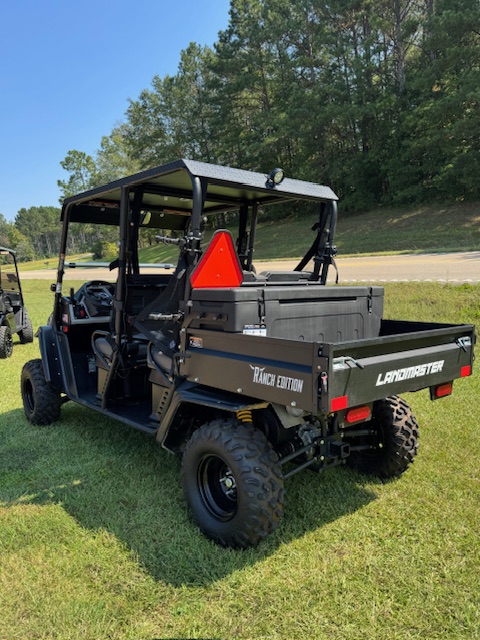

2024 American LandMaster L7 – More Power, More Capabilities

Whether it’s upkeep on your garden or going for an evening drive around the lake, the L7 delivers all the functionality you need, in an easy-to-maintain platform that will keep you doing the things you enjoy, not bogged down with vehicle maintenance or mechanic’s bills.

We’ve Got High Standards All Steel Frame: Every LandStar frame is bent, welded, powder-coated and assembled in our Columbia City, Indiana facility. Don’t believe us, just stop by our headquarters anytime during the week and we’d be glad to give you and your guests a tour of our manufacturing facility. With our full steel frame you won’t have to worry about sticks, rocks, or other debris tearing a hole in your floor boards.
Fuel, Voltage & Hour Gauge Included: With a range up to 100 miles on all our gas powered units, you won’t have the headache of having to refuel constantly. All vehicles now come standard with a fuel gauge, hour meter, and battery meter. Now you’ll know exactly when it’s time to fuel up, get your UTV in for maintenance or tend to your battery.
Tow Like a Boss: Each vehicle comes equipped with a rear hitch giving you the capability to tow up to 1,200 lbs on our 4wd units and 1,100 lbs on our 2wd units. You’ll have enough towing power to handle just about any job. Why pay thousands more with another brand when American LandMaster offers you a utility vehicle with the same capabilities?
Haul Just About Anything: With a payload up to 500 lbs, on our 4wd units, and 400lbs, on our 2wd units, you’ll be able to transport lumber, tools, fuel, or pets wherever they need to go. All four bed options have dump-functionality. Our hauling power matches the competition for the 48in platform UTVs, but beats them on American-Made and Price every time.
Trail-Ready / Transport-Ready: With our unique nimble design, you’ll be able to squeeze through tight trails and hidden terrains a lot easier than other brands of UTVs. In addition, you’ll find that our vehicle is much easier to transport and fits nicely in the bed of a pickup truck..

Even More Comes Standard:

Maintenance-Free AGM Battery: Sealed Absorbed Glass Mat (AGM) Batteries do not spill, sulfate or degrade like flooded batteries do. AGM batteries charge up to 5x faster than the classic flooded batteries and also have the ability to deep cycle. This results in higher efficiency when both discharging and recharging.
Extreme Off-Road Tires: Standard across our entire line, these aggressive tires will get you in and out of mud and rutted terrains quick and easy. You may think 6-ply, 1” deep tread pattern is a bit extreme, but who wants a UTV that’s not a little on the wild side?
Roof & Foldable Windshield Optional

Specifications

Power: 627cc Carbureted Vanguard Commercial Grade Engine
Speed: Up to 35 mph**
Fuel Consumption: Up to 18 mpg* *
Range: Up to 100 miles**
Starting: 12V keyed ignition / recoil backup
Battery: 12V / 315 cca utility class
Spark Plug: NGK BKR5E
Fuel Capacity: 5.0 gal.
Alternator: 16 amp
Transmission: CVT automatic
Transaxle: Gear drive Schafer/DANA oil-filled transaxle
Differential: Cable Actuated Rear-Locking
Drive: 4 wheel drive
Front Suspension: Double A-arms, adjustable shocks with up to 8” travel
Rear Suspension: Articulated rear swing arm, featuring quad adjustable shocks with up to 8” travel
Brake System: 6.25” dual rear hydraulic drum with hand operated parking brake
Tires: 25 x 8 – 12 (front) 25 x 10 – 12 (rear)
Dimensions: 110 in. L x 58 in. W x 76 in. H
Wheel Base: 105 in.
Turning Radius: 14 ft inside radius
Dry Weight: 1200 lb.
Shipping Weight: 1200 lb.
Bed Material: Structural foam “Poly Bed” with stake pockets
Bed Dimensions: 35.25 in. L x 41.5 in. W x 11 in. D
Bed Capacity: 9.25 cu.ft. / 400 lb.
Rear Flip Seat: Available as an option
Towing Capacity: 1500 lb.
Vehicle Capacity: 1500 lb.
Warranty: 3 year engine / All other 1 year limited
Additional Features: 3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, headrests
Extra Features: All American LandMaster Models Come With Top & Windshield Included! That’s an average savings across the industry of $620 that we provide to our customers at no additional cost. We believe these are important accessories for the vehicle that make your life easier.
NOTES: Body paint is black on all base models. Alternate body and hood colors available in package upgrades. 2wd models & all cruiser models do not have headrests. ** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances. With top 6995
